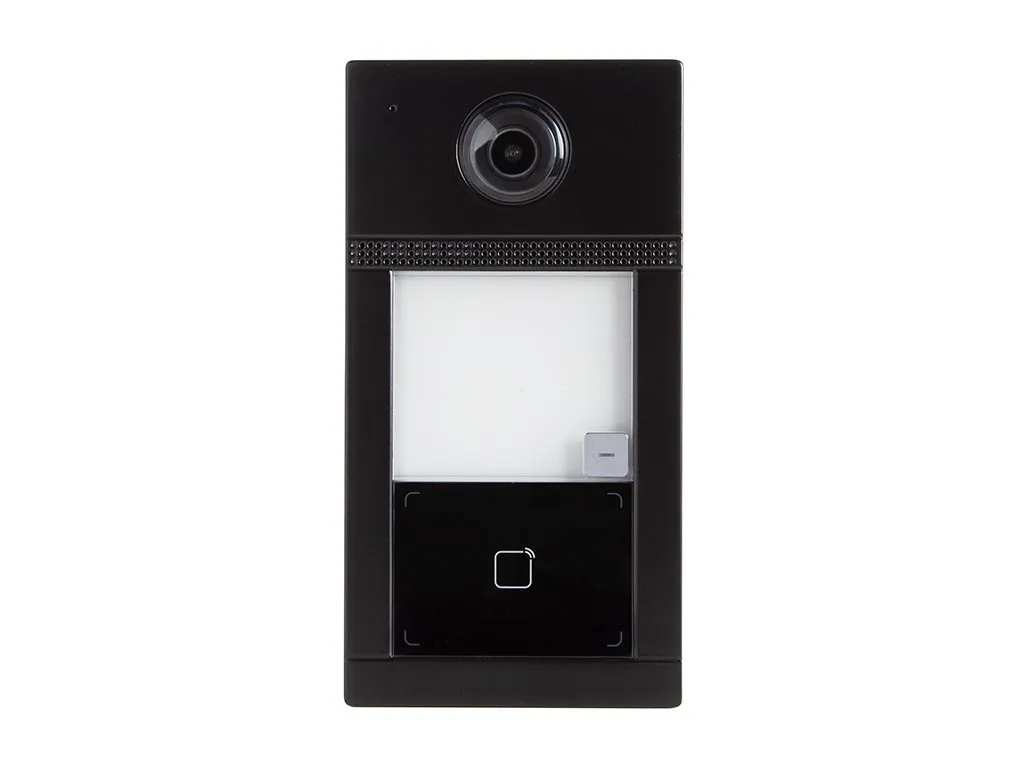

+ Advanced display: The doorbell comes with an advanced 2MP camera with IR night vision. Along with the LED lights, it ensures sharp, detailed images even in low light conditions. + Built-in card reader: The doorbell is equipped with a built-in RFID card reader, providing a secure way to grant access to the holder of an RFID card. This doorbell comes with 2 pre-programmed RFID cards, eliminating the need for manual pairing.+ Easy installation: Thanks to the pre-programmed plug-and-play configuration, the doorbell is easy to install and connect. No complex wiring is required. Moreover, the doorbell receives data and power through a standard PoE connection, eliminating the need for additional power.+ Suitable for outdoor installation: The intercom doorbell boasts an IP65 protection rating. With its robust dust and waterproof metal housing, you can confidently install the doorbell outdoors. Despite this, the housing remains slim, maintaining an elegant appearance.+ Upgradable: This doorbell can be used out-of-the-box but is also expandable. You can upgrade the doorbell with an additional doorbell, light and/or sound signals, or connect it to your existing home automation system for a complete state-of-the-art video intercom doorbell. - various applications:
- Android app: Guarding Vision
- iOS app: Guarding Vision
- Windows software: Guarding Vision
- iOS software: Guarding Vision
Specifications
| Product basic info |
|---|
| Instruction manual languages | Dutch, English, French |
| Primary colours | Black |
| Additional colours | Grey, White |
| Depth unit | 29 mm |
| Height unit | 174 mm |
| Width unit | 91 mm |
| Weight unit | 370 g |
| Material | Metal |
| Additional material | ABS |
| Physical properties |
|---|
| Number of buttons | 1 |
| Number of status LED indicators | 3 |
| Number of lenses | 1 |
| Electrical data |
|---|
| Lamp type | Led |
| Technical data |
|---|
| Mounting type | Surface mounted |
| Operating frequency range | 2.4-2.4835 GHz |
| Tamper switch | 1 |
| Microphone type | Built in omnidirectional microphone |
| Audio compression bitrate | 64 kbit/s |
| Audio compression standard | G.711 A, G.711 U |
| Bandwidth network | 20/40 MHz |
| Card capacity | 10000 |
| Doorbell functions | Call, Communicate, Unlock, Videophone |
| Echo cancellation | |
| Frequency power specifications | - 802.11b:15 dBm +/- 1.5 dBm
- 802.11g:15 dBm +/- 1.5 dBm
- 802.11n(ht20):14 dBm +/- 1.5 dBm
- 802.11n(ht40):12 dBm +/- 1.5 dBm
|
| Horizontal field of view (FOV) | 124 ° |
| Impact resistance (IK) | IK08 |
| Linked indoor station capacity | 1 |
| Lock control | 2 relays, Max. 30 VDC 2 A |
| Nametags | |
| Network protocol | RTSP, TCP/IP |
| Noise surpresion | |
| Number door contact inputs | 2 |
| Number exit buttons | 2 |
| Number nametags | 1 |
| Power over Ethernet (PoE) | |
| Random-access memory (RAM) | 256 MB |
| Read-only memory (ROM) | 32 MB |
| Sub door station capacity | 16 |
| Vertical field of view (FOV) | 75 ° |
| Video compression standard | H.264 |
| Wide dynamic range WDR | 76.9 dB, Digital WDR |
| Resolution specifications | - Transmisión principal: 1920 × 1080p y 1280 × 720p
- Secuencia secundaria: 640 × 480p
|
| Set-up options |
|---|
| Available languages | Arabic, Bulgarian, Croatian, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Spanish, Turkish, Ukrainian, Vietnamese |
| Adjustable volume control | |
| RFID card operation frequency | 13.56 MHz |
| Number of alarms | 4 |
| Environmental data |
|---|
| IP rating | IP65 |
| Operating temperature range | -40-53 °C |
| Usage location | Indoor & outdoor |
| Operating humidity | 10-95 % |
| Operational properties |
|---|
| Number of users | 2000 |
| Operating system | Linux |
| Maximum infrared night vision range | 3 m |
| Audio connections |
|---|
| Audio output type | Built in loudspeaker |
| IT connections |
|---|
| Interface type | RS485 |
| Control through mobile app | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Power supply |
|---|
| Maximum power consumption | 10 W |
| Power supply | Power over Ethernet (PoE) |
